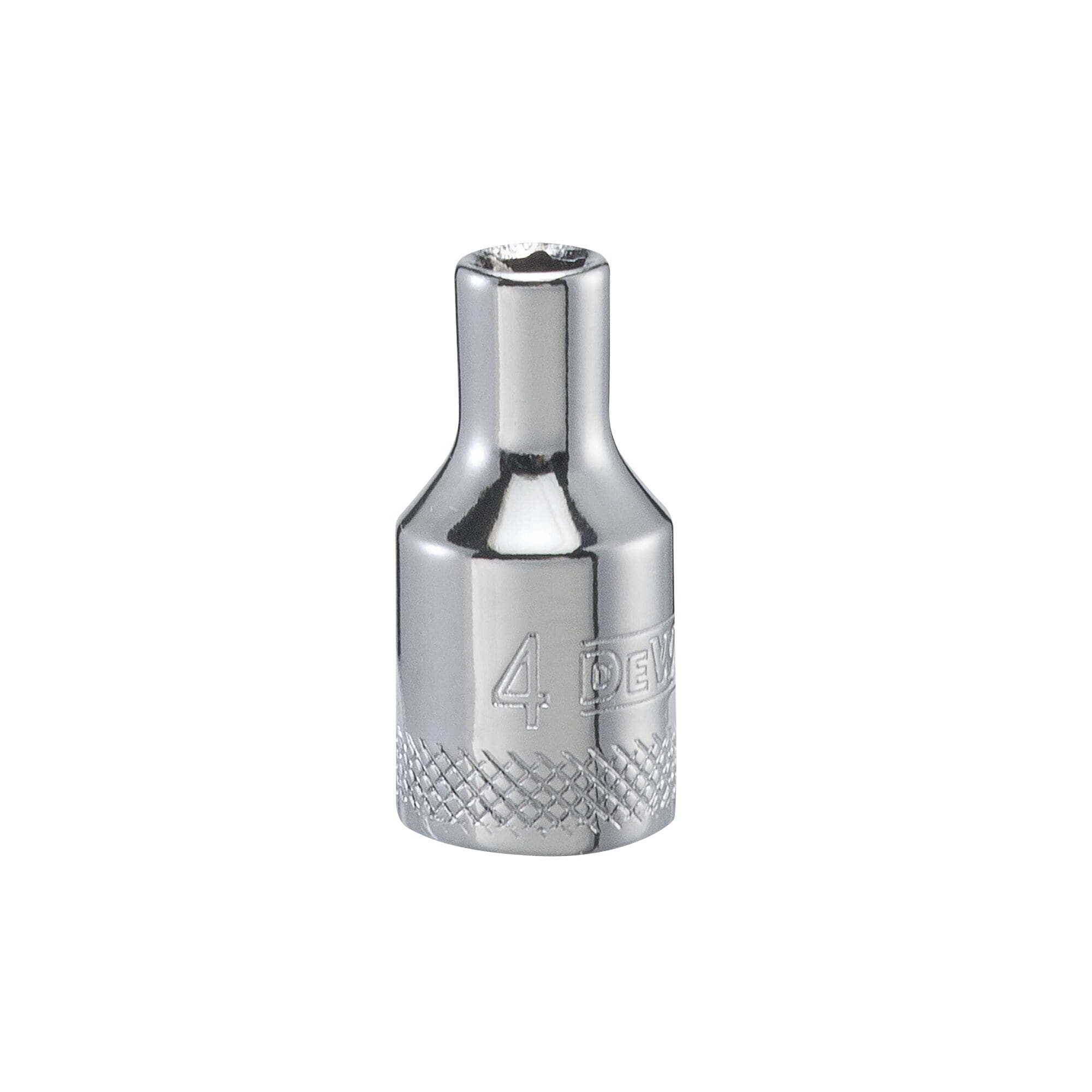

1/4 in Drive Metric Sockets 6 pt

DirectTorque™ Technology
Polished chrome vanadium finish
Knurled control ring

See More Details

Product Details

Downloads

Product Overview

These Hand Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The chrome finish helps provide protection against chipping and flaking.

Additional Features

Hard stamped markings

Warranty Information

Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.

Learn More

Service

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Learn More

Product nameFind the right size	SKU	Nut End Outside Diameter [in]	Drive End Outside Diameter [in]	Nut Depth [in]	Bolt Clearance Depth [in]	Overall Length [in]
1/4 in Drive 6 pt Standard Socket 4.5 mm	DWMT19298	9/32	15/32	5/32	21/32	31/32
1/4 in Drive 6 pt Standard Socket 5.5 mm	DWMT19299	11/32	15/32	5/32	21/32	31/32
1/4 in Drive 6 pt Standard Socket 4 mm	DWMT86101	9/32	15/32	5/32	21/32	31/32
1/4 in Drive 6 pt Standard Socket 5 mm	DWMT86102	5/16	15/32	5/32	21/32	31/32
1/4 in Drive 6 pt Standard Socket 6 mm	DWMT86103	3/8	15/32	3/16	21/32	31/32
1/4 in Drive 6 pt Standard Socket 7 mm	DWMT86104	7/16	15/32	7/32	7/32	31/32
1/4 in Drive 6 pt Standard Socket 8 mm	DWMT86105	15/32	15/32	7/32	7/32	31/32
1/4 in Drive 6 pt Standard Socket 9 mm	DWMT86106	17/32	17/32	1/4	1/4	31/32
1/4 in Drive 6 pt Standard Socket 10 mm	DWMT86107	19/32	19/32	9/32	9/32	31/32
1/4 in Drive 6 pt Standard Socket 11 mm	DWMT86108	5/8	5/8	5/16	5/16	31/32
1/4 in Drive 6 pt Standard Socket 12 mm	DWMT86109	21/32	21/32	5/16	3/8	31/32
1/4 in Drive 6 pt Standard Socket 13 mm	DWMT86112	11/16	11/16	5/16	13/32	31/32
1/4 in Drive 6 pt Standard Socket 14 mm	DWMT86114	25/32	25/32	13/32	1/2	31/32
