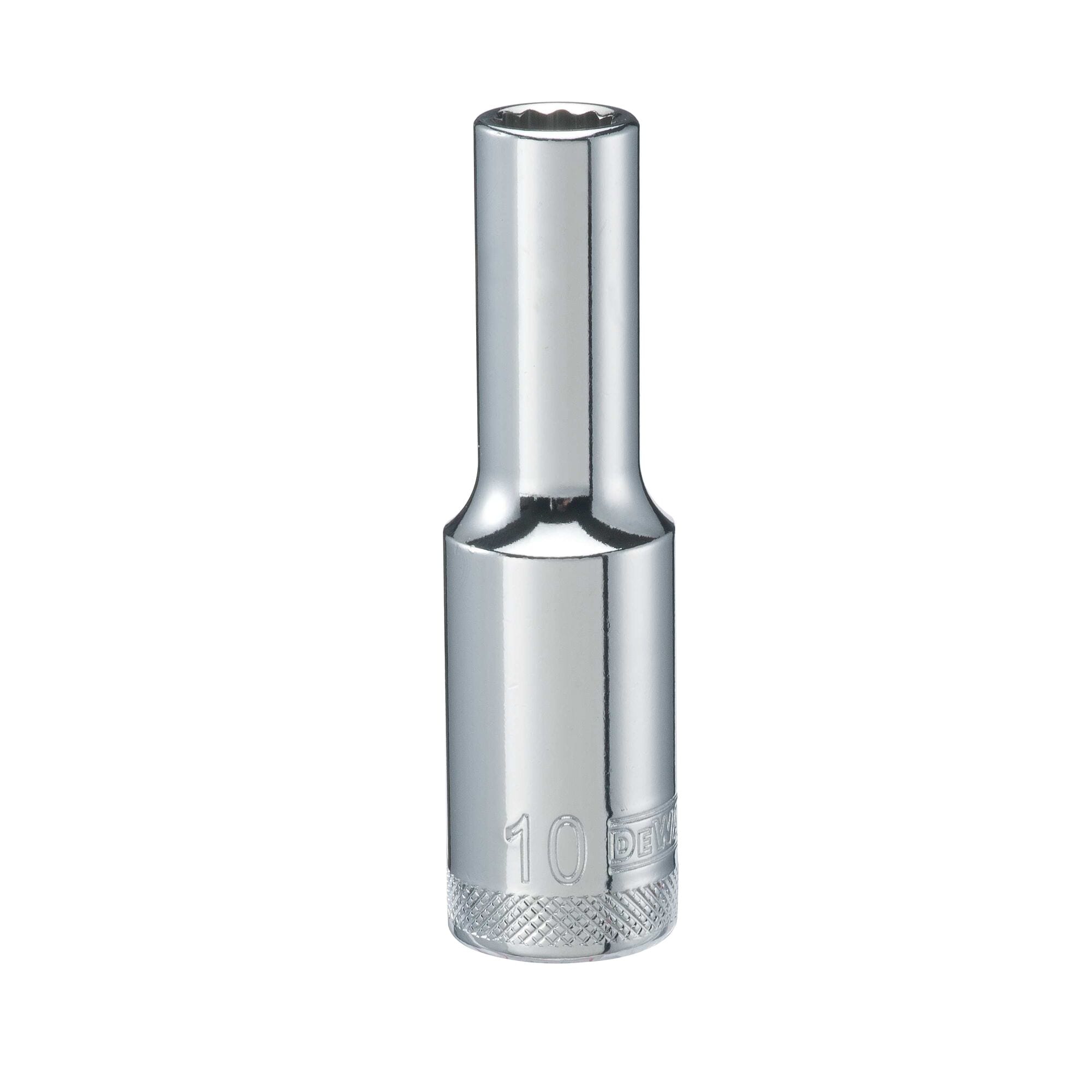

1/2 in Drive Deep Metric Sockets 12 pt
Discontinued DWMT19266
1/2 in Drive Deep Metric Sockets 12 pt
- DirectTorque™ Technology
- Polished chrome vanadium finish
- *Knurled control ring
Discontinued DWMT19266
1/2 in Drive Deep Metric Sockets 12 pt
- DirectTorque™ Technology
- Polished chrome vanadium finish
- *Knurled control ring
Product Details
Downloads
These Hand Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The chrome finish helps provide protection against chipping and flaking.
- Hard stamped markings
Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
| Product nameFind the right size | SKU | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 in Drive 12 pt Deep Socket 10 mm | DWMT19266 | 5/8 | 7/8 | 21/32 | 2-15/32 | 3-1/8 | ||
| DWMT 1/2" DR 12PT DP SKT 11MM | DWMT19267 | 21/32 | 7/8 | 23/32 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 23 mm | DWMT19268 | 1-7/32 | 1-7/32 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 27 mm | DWMT19269 | 1-13/32 | 1-13/32 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 28 mm | DWMT19270 | 1-15/32 | 1-15/32 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 30 mm | DWMT19272 | 1-9/16 | 1-9/16 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 32 mm | DWMT19273 | 1-5/8 | 1-5/8 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 12 mm | DWMT74541 | 23/32 | 7/8 | 3/4 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 13 mm | DWMT74542 | 3/4 | 7/8 | 13/16 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 14 mm | DWMT74544 | 13/16 | 7/8 | 31/32 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 15 mm | DWMT74545 | 13/16 | 7/8 | 1-3/32 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 16 mm | DWMT74547 | 7/8 | 29/32 | 1-7/32 | 2-15/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 17 mm | DWMT74548 | 15/16 | 15/16 | 1-11/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 18 mm | DWMT74549 | 1 | 1 | 1-11/32 | 2-7/32 | 3-1/8 | ||
| DWMT74550 | DWMT74550 | 1-1/32 | 1-1/32 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 21 mm | DWMT74551 | 1-3/32 | 1-3/32 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 22 mm | DWMT74552 | 1-3/16 | 1-3/16 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 24 mm | DWMT74553 | 1-1/4 | 1-1/4 | 1-13/32 | 2-7/32 | 3-1/8 | ||
| 1/2 in Drive 12 pt Deep Socket 20 mm | DWMT86428 | 1-3/32 | 1-3/32 | 1-13/32 | 2-7/32 | 3-1/8 |
