1/4 in Drive Impact Sockets 6 pt

Heat treated CR-440 steel
DirectTorque™ Technology
High visibility laser etched markings

See More Details

Product Details

Downloads

Product Overview

These Impact Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The socket sizes are clearly shown in large font for easy identification during use.

Additional Features

O-ring and retaining pin compatible
Black oxide coating

Warranty Information

Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.

Learn More

Service

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Learn More

Product nameFind the right size	SKU	Nut End Outside Diameter [in]	Drive End Outside Diameter [in]	Nut Depth [in]	Bolt Clearance Depth [in]	Overall Length [in]
1/4 in Drive 6 pt Impact Socket 1/2 in	DWMT17325	23/32	1/2	7/16	11/32	29/32
1/4 in Drive 6 pt Impact Socket 1/4 in	DWMT17326	13/32	1/2	7/16	11/32	29/32
1/4 in Drive 6 pt Impact Socket 11/32 in	DWMT17328	1/2	1/2	7/16	11/32	29/32

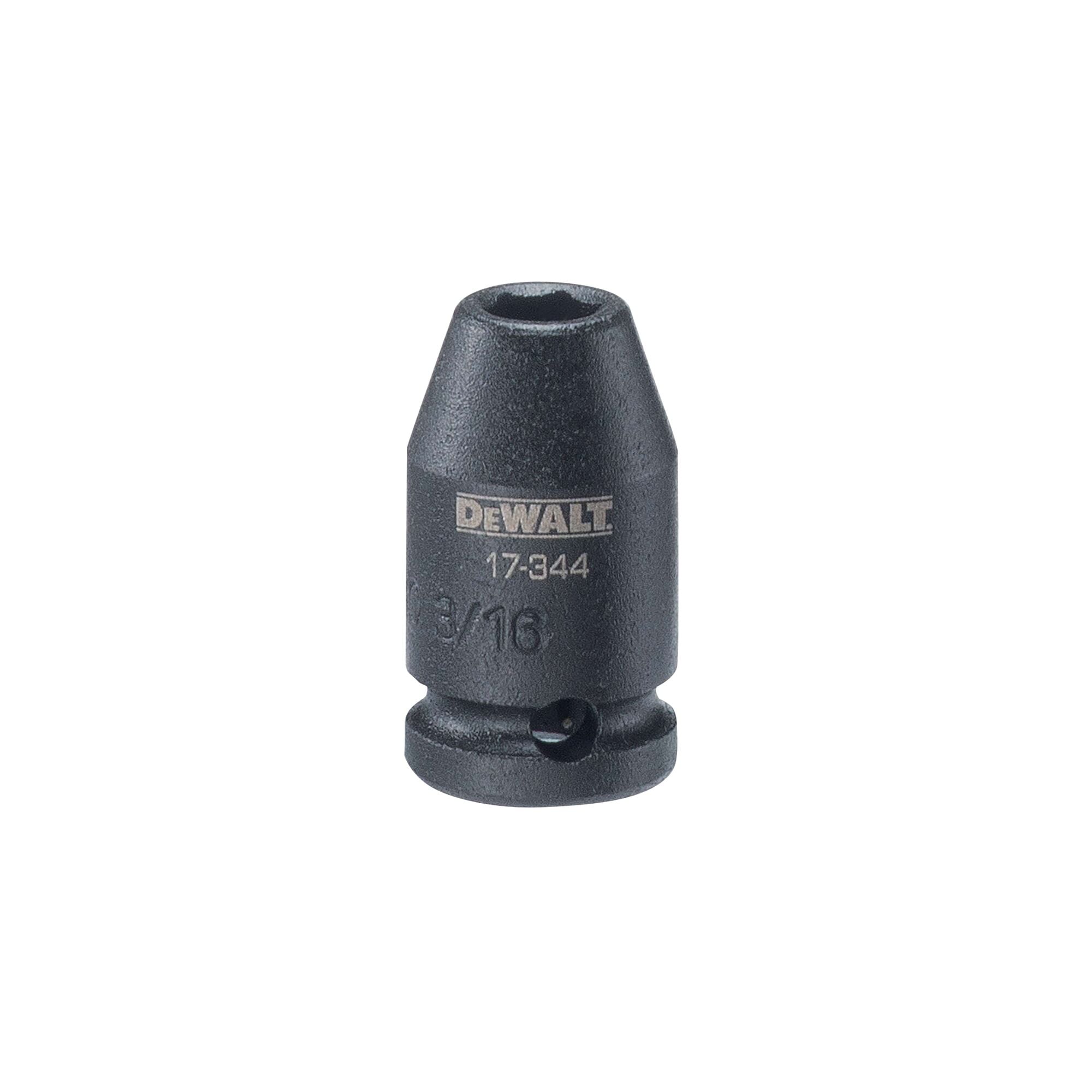

1/4 in Drive 6 pt Impact Socket 3/16 in	DWMT17344	11/32	1/2	13/32	11/32	29/32
1/4 in Drive 6 pt Impact Socket 3/8 in	DWMT17345	9/16	1/2	7/16	11/32	29/32
1/4 in Drive 6 pt Impact Socket 5/16 in	DWMT17349	15/32	1/2	7/16	11/32	29/32
1/4 in Drive 6 pt Impact Socket 7/16 in	DWMT19003	5/8	1/2	7/16	11/32	29/32
1/4 in Drive 6 pt Impact Socket 7/32 in	DWMT19004	3/8	1/2	13/32	11/32	29/32
1/4 in Drive 6 pt Impact Socket 9/16 in	DWMT19008	25/32	1/2	7/16	15/32	29/32
1/4 in Drive 6 pt Impact Socket 9/32 in	DWMT19009	7/16	1/2	7/16	11/32	29/32
