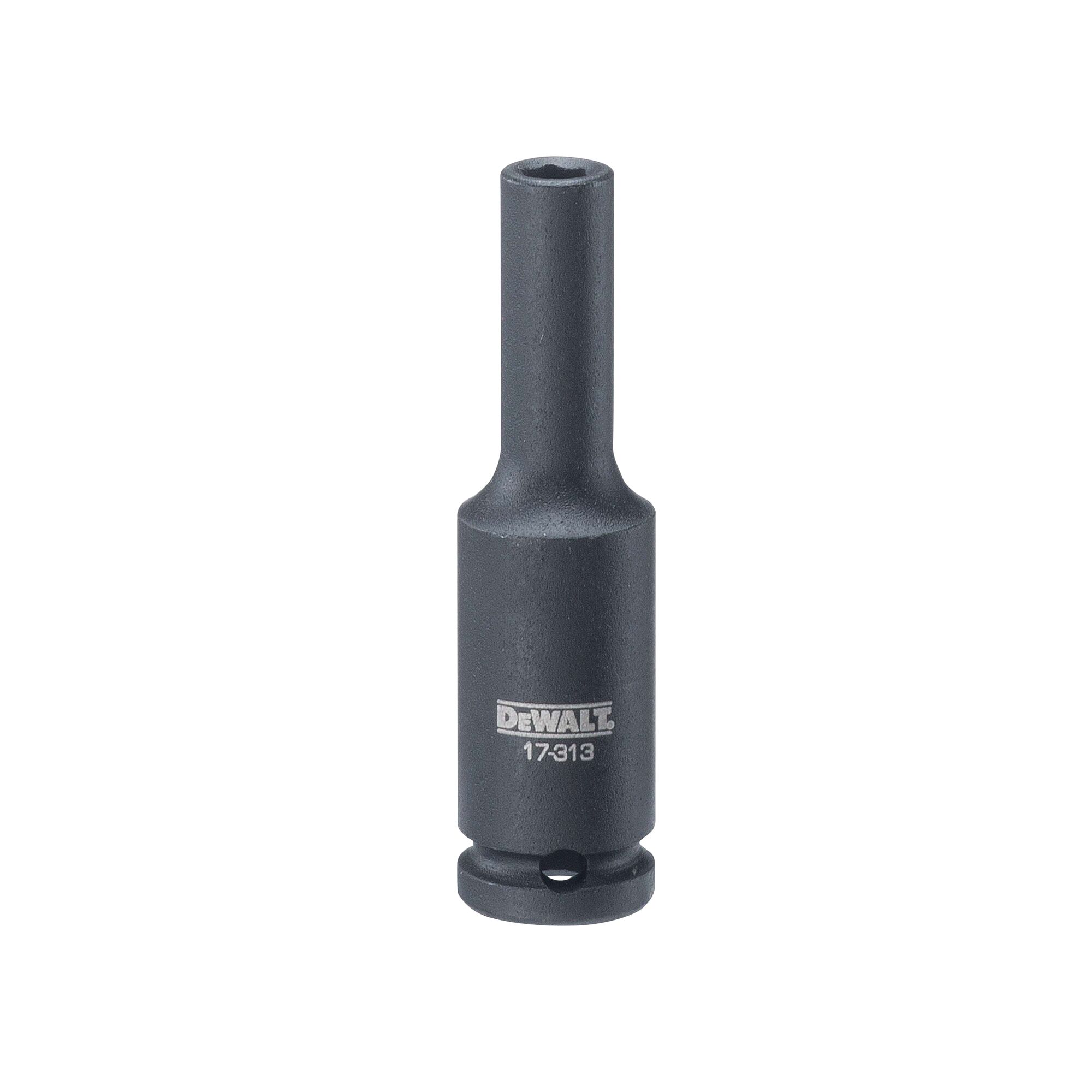

1/4 in Drive Deep Metric Impact Sockets 6 pt
Discontinued DWMT17313
1/4 in Drive Deep Metric Impact Sockets 6 pt
- Heat treated CR-440 steel
- DirectTorque™ Technology
- High visibility laser etched markings
Discontinued DWMT17313
1/4 in Drive Deep Metric Impact Sockets 6 pt
- Heat treated CR-440 steel
- DirectTorque™ Technology
- High visibility laser etched markings
Product Details
Downloads
These Impact Sockets have DirectTorque™ technology to help prevent rounding of fasteners and to provide better grip. The socket sizes are clearly shown in large font for easy identification during use.
- O-ring and retaining pin compatible
- Black oxide coating
Unfortunately, the warranty information cannot be retrieved for this specific product. Please review the information about our warranties.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
| Product nameFind the right size | SKU | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | ||
|---|---|---|---|---|---|---|---|---|
| 1/4 in Drive 6 pt Deep Impact Socket 10 mm | DWMT17242 | 9/16 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 11 mm | DWMT17244 | 5/8 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 12 mm | DWMT17245 | 21/32 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 13 mm | DWMT17246 | 3/4 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 14 mm | DWMT17247 | 25/32 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 15 mm | DWMT17248 | 13/16 | 1/2 | 1/2 | 1-5/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 4.5 mm | DWMT17312 | 5/16 | 1/2 | 5/16 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 4 mm | DWMT17313 | 9/32 | 1/2 | 9/32 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 5.5 mm | DWMT17314 | 3/8 | 1/2 | 11/32 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 5 mm | DWMT17316 | 11/32 | 1/2 | 11/32 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 6 mm | DWMT17317 | 3/8 | 3/8 | 7/16 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 7 mm | DWMT17320 | 7/16 | 1/2 | 7/16 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 8 mm | DWMT17321 | 15/32 | 1/2 | 1/2 | 1-3/16 | 1-31/32 | ||
| 1/4 in Drive 6 pt Deep Impact Socket 9 mm | DWMT17324 | 17/32 | 1/2 | 1/2 | 1-5/16 | 1-31/32 |
