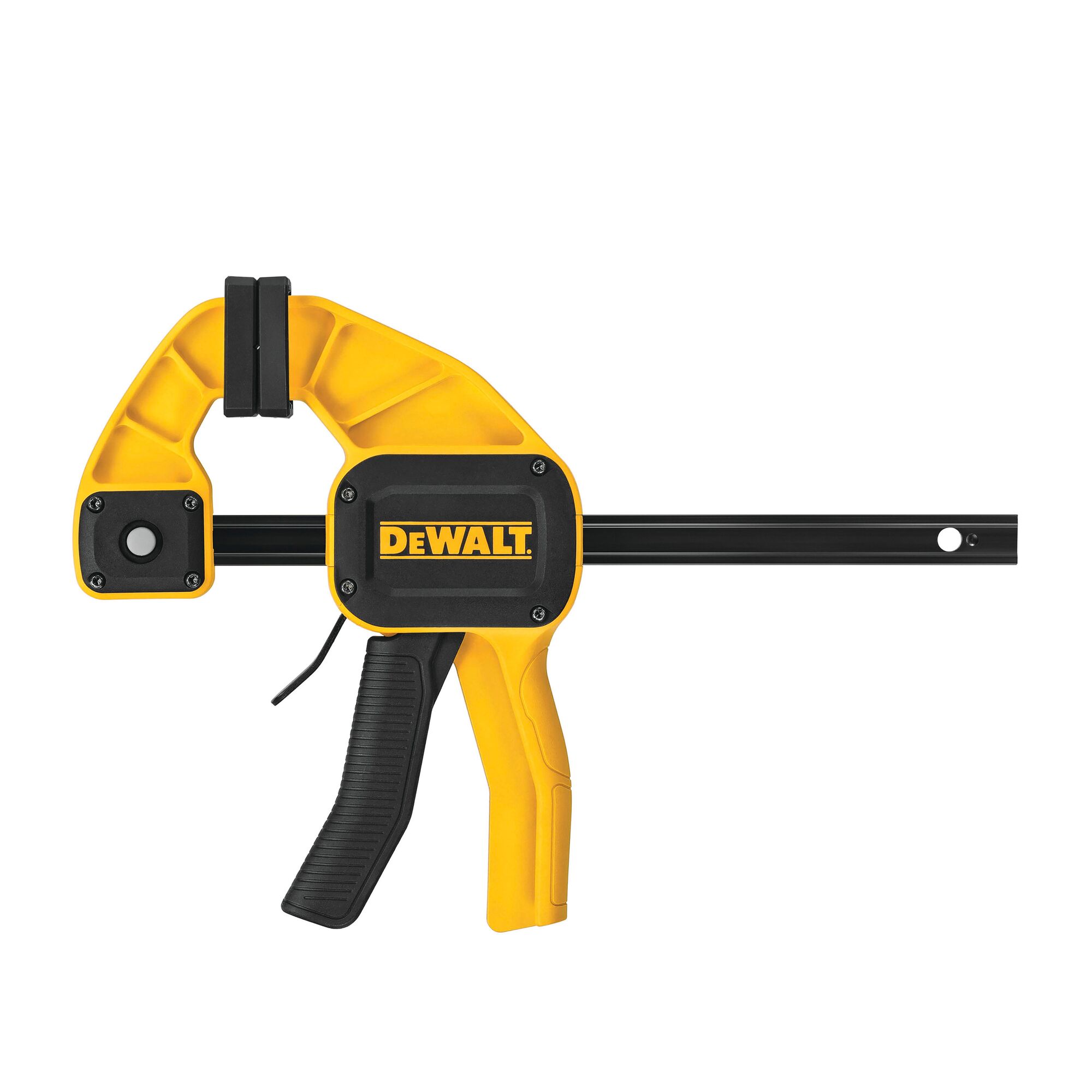

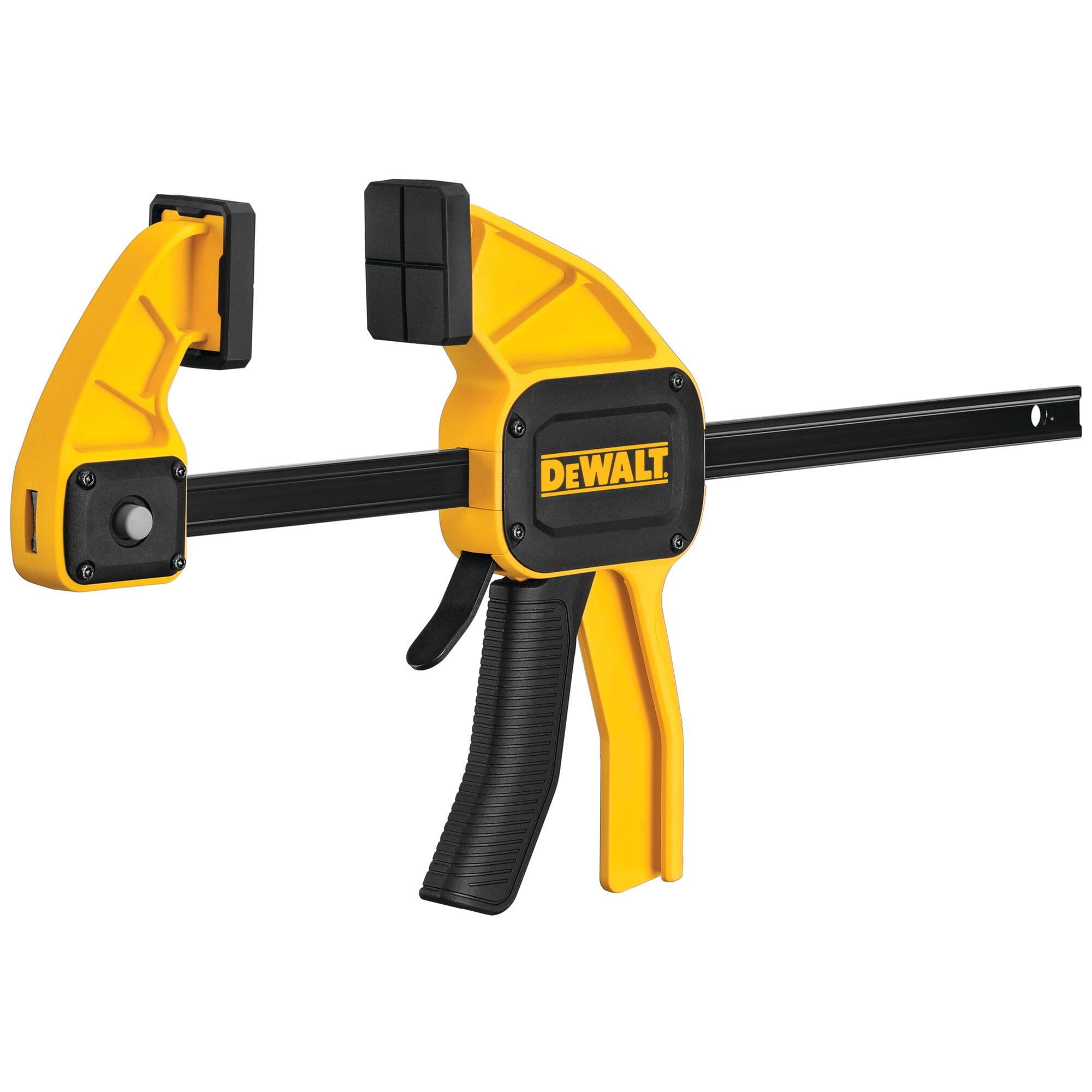

6 in. (150 mm) Large Trigger Clamp
DWHT83192
6 in. (150 mm) Large Trigger Clamp
- 300 lb clamping force
- 3-1/4" throat depth
- Reinforced nylon body and heat-treated steel bar for strength and durability
DWHT83192
6 in. (150 mm) Large Trigger Clamp
- 300 lb clamping force
- 3-1/4" throat depth
- Reinforced nylon body and heat-treated steel bar for strength and durability
Product Details
Downloads
This large clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 300-pounds of clamping force, 3-1/4 in. throat depth, quick change button for easy conversion to a spreader, and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.
- General Contractors
- Cabinet Makers
- Cabinet Installers
- Carpenters
|
Average Clamping Force [Kg]
|
135
|
|
Bar Length [mm]
|
150
|
|
Bar Material
|
Black Oxide Carbon Steel I-Beam
|
|
Bar Thickness [mm]
|
5
|
|
Body Material
|
Plastic
|
|
Clamping Capacity [mm]
|
165
|
|
Clamping Force [Kg]
|
135
|
|
Clamping Force [lbs]
|
300
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Handle Material
|
Plastic
|
|
Has Quick Release Mechanism?
|
Yes
|
|
Has Safety Stop?
|
Yes
|
|
Jaw Depth [mm]
|
50
|
|
Jaw Pads Material
|
Non-Marring
|
|
Jaw Pad Type
|
Fix
|
|
Jaw Width [mm]
|
40
|
|
Max. Clamping Force [Kg]
|
135
|
|
Max. Jaw Opening [mm]
|
165
|
|
Packaging
|
Hang Tag
|
|
Pad Dimensions l x w x h [in]
|
50mm x40mm x9mm
|
|
Product Dimensions with Packaging l x w x h [in]
|
340mm x 250mm x 40mm
|
|
Product Dimensions w/o Packaging l x w x h [in]
|
340mm x 250mm x 40mm
|
|
Product Height [mm]
|
40
|
|
Product Length [mm]
|
340
|
|
Product Weight [g]
|
600
|
|
Product Weight [Kg]
|
0.6
|
|
Product Width [mm]
|
250
|
|
Spreading Capacity [mm]
|
330
|
|
Spreading Function
|
Yes
|
|
Sustained Clamping Force [Kg]
|
135
|
|
Throat Depth [in]
|
3-1/4
|
|
Throat Depth [mm]
|
80
|
- One-handed operation for ease of use
- Quick change button allows for easy conversion to a spreader
- Removable jaw pads helps reduce marring
- (1) Clamp
- 1 Year Limited Warranty
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
