DWE7491RS

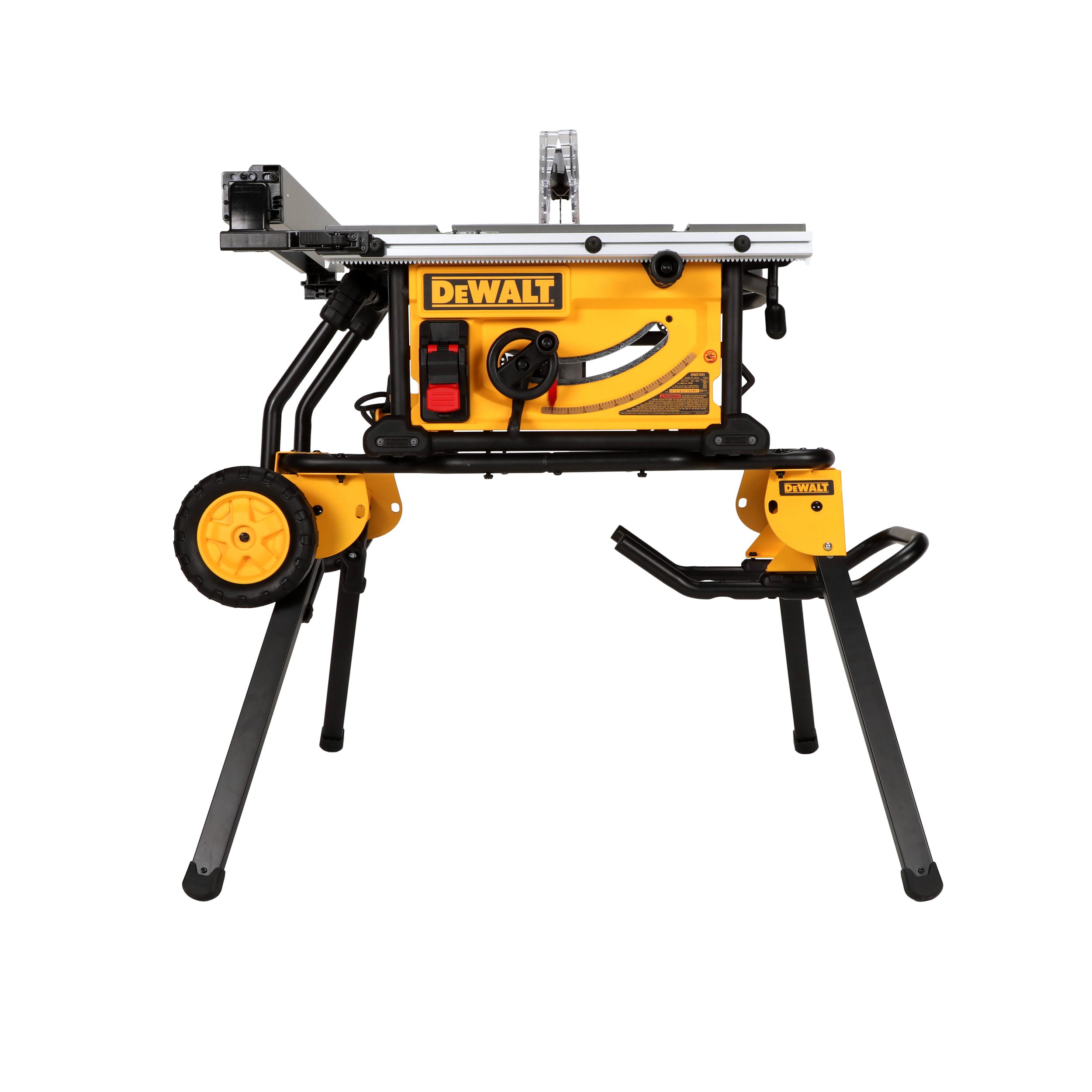

10 in. Jobsite Table Saw and Rolling Stand

DWE7491RS

10 in. Jobsite Table Saw and Rolling Stand

Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate
3-1/8" depth-of-cut at 90 and 2-1/4" at 45
21-7/8" x 26 - 3/8" table provides superior material support

See More Details

DWE7491RS

10 in. Jobsite Table Saw and Rolling Stand

Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate
3-1/8" depth-of-cut at 90 and 2-1/4" at 45
21-7/8" x 26 - 3/8" table provides superior material support

See More Details

Product Details

Downloads

Product Overview

The DWE7491RS 10" Jobsite Table Saw 32 - 1/2" Rip Capacity, and a Rolling Stand has a 15 Amp motor and 32-1/2" rip capacity to allow cutting of large and hardwood materials. Features tool-free guarding component adjustments and fast, accurate fence adjustments. Rolling stand designed for easy set up and breakdown with excellent stability.

Applications

Cabinet Installers: ripping filler boards
Hardwood Floor Installers; ripping floor boards
Trim Carpenters: ripping moldings, wainscoting, ripping and cross cutting 1 X material for framing book shelves and entertainment centers, ripping framing lumber
Deck Builders: ripping deck boards, rail cap, railing
Remodelers; ripping framing lumber, sheet material (4' X 8')
Serious Woodworkers: home hobbyists, ripping sheet material (4' X 8'), framing lumber, 2" X 12"), sizing material up to 3" thick, ripping and cross cutting 1X material used for dados, rabbets, mortise and tenons.

Specifications

Bevel Capacity [deg]	57°
Blade Diameter [in]	10
Color	Yellow
Disc Diameter [in]	10
Has Dust Extraction?	Yes
Has Tiltable Indicator?	Yes
Max. Depth of Cut at 45° [in]	2-1/4
Max. Depth of Cut at 90° [in]	3-1/8
Max. Ripping Capacity (Left) [in]	22
Max. Ripping Capacity (Right) [in]	32-1/2
Power Source	Corded
Product Height [in]	31
Product Length [in]	31
Product Weight [oz]	1440
Product Width [in]	24.5
Table size [in]	21-7/8 x 26-3/8
Type of Dust Extraction	Collection port
Uncertainty K1 (Vibration)	2

Additional Features

Patented material support, can be used for narrow rip cuts
32-1/2" rip capacity easily cuts a variety of larger shelving and trim materials
Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use
Rolling stand designed for easy set up and breakdown with excellent stability
Telescoping fence rails retract to create a small, portable package
Flip over ripping fence allows for narrow rip cuts
15 amp Motor quickly rips through hardwoods with ease
2-1/2" Dust Collection Port easily connects to a vacuum for efficient dust extraction

Includes

(1) Rolling Stand
(1) Push Stick
(1) Miter Gauge
(1) Rip Fence
(2) Blade Wrenches
(1) Blade Guard Assembly
(1) 10" 24-Tooth Carbide Blade

Warranty Information

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
