DWE4557

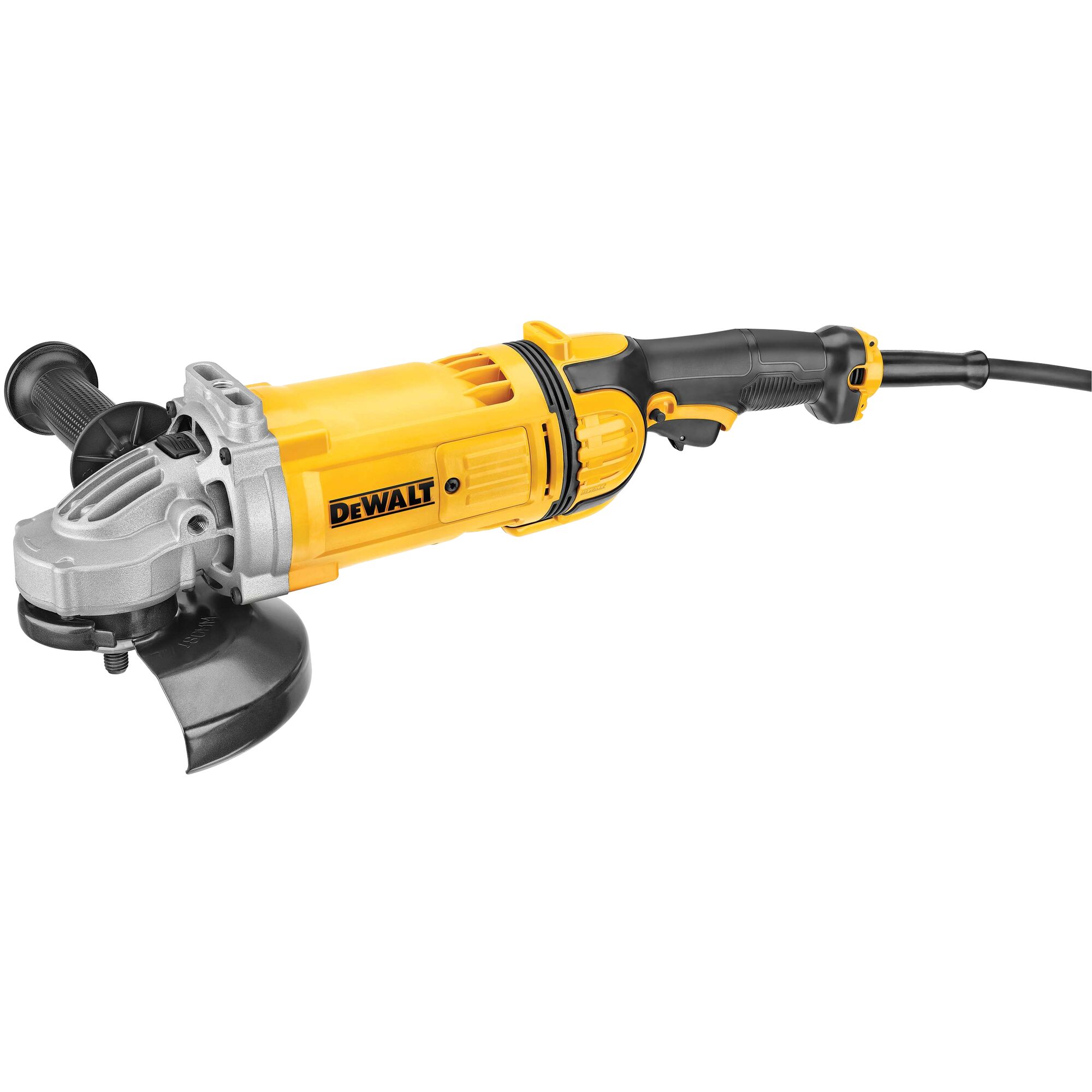

7 in. 4.7 HP Angle Grinder

DWE4557

7 in. 4.7 HP Angle Grinder

High power 4.7 HP (maximum motor HP) 8,500 rpm motor provides overload protection provides higher operating speeds under load
Soft-grip trigger handle provides greater comfort and control
Thick, "S" style cord takes the abuse of the jobsite and shop environments providing durability and long life for the cord set

See More Details

DWE4557

7 in. 4.7 HP Angle Grinder

High power 4.7 HP (maximum motor HP) 8,500 rpm motor provides overload protection provides higher operating speeds under load
Soft-grip trigger handle provides greater comfort and control
Thick, "S" style cord takes the abuse of the jobsite and shop environments providing durability and long life for the cord set

See More Details

Product Details

Downloads

Product Overview

Complete a wide variety of grinding applications with the 7 in. 4.7 HP Angle Grinder. Designed to deliver high performance in tough jobs, this grinder provides up to 8,500 rpm for optimal material removal on tough jobs.

Applications

Power Input: 2400 Watts No Load Speed: 8500 rpm Max. Disc Diameter: 180 mm Spindle Thread: M14 Weight: 5.5 Kg Length: 520 mm Height: 145 mm Hand/Arm Vibration - Grinding: 8.5 m/s² Uncertainty K 1 (Vibration): 1.5 m/s² Hand/Arm Vibration - Sanding: greater than2.5 m/s² Uncertainty K 2 (Vibration): 1.5 m/s² Sound Pressure: 96 dB(A) Sound Pressure Uncertainty: 3 dB(A) Sound Power: 107 dB(A)

Specifications

Amps [A]	15
Disc Diameter [mm]	180
Max. Watts Out [W]	3450
Power Input [W]	2400
Product Height [mm]	145
Product Length [mm]	520
Product Weight [g]	5500
Product Weight [Kg]	5.5
Sound Pressure [dB(A)]	96
Sound Pressure Uncertainty [dB(A)]	3
Spindle Size [in]	5/8-11
Tool Weight [lbs]	12

Additional Features

3-position side handle provides improved ergonomics for specific applications
This product runs off of AC/DC power
Dust Ejection System™ protects the motor from damaging particles entering air intake that would otherwise abrade the motor and increases brush life
Anti-vibe trigger handle reduces user fatigue caused by vibration
Lightweight design (11.6 lbs) lessens user fatigue
Automatic turn-off brushes shut down the tool when brushes need to be changed to avoid tool damage
Low-profile gearcase allows for work in tight areas
8,500 rpm provides optimal material removal with 7" grinding wheels
Brush door allows for quick brush replacement
Quick-Change™ guard allows user to quickly adjust guard to redirect sparks

Includes

(1) 3 Position side handle
(1) 7" Guard

Warranty Information

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
