DW616

1-3/4 HP (maximum motor HP) Fixed Base Router

DW616

1-3/4 HP (maximum motor HP) Fixed Base Router

1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
Nickel plated motor housing for a smooth, long-lasting depth adjustment

See More Details

DW616

1-3/4 HP (maximum motor HP) Fixed Base Router

1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
Nickel plated motor housing for a smooth, long-lasting depth adjustment

See More Details

Product Details

Downloads

Product Overview

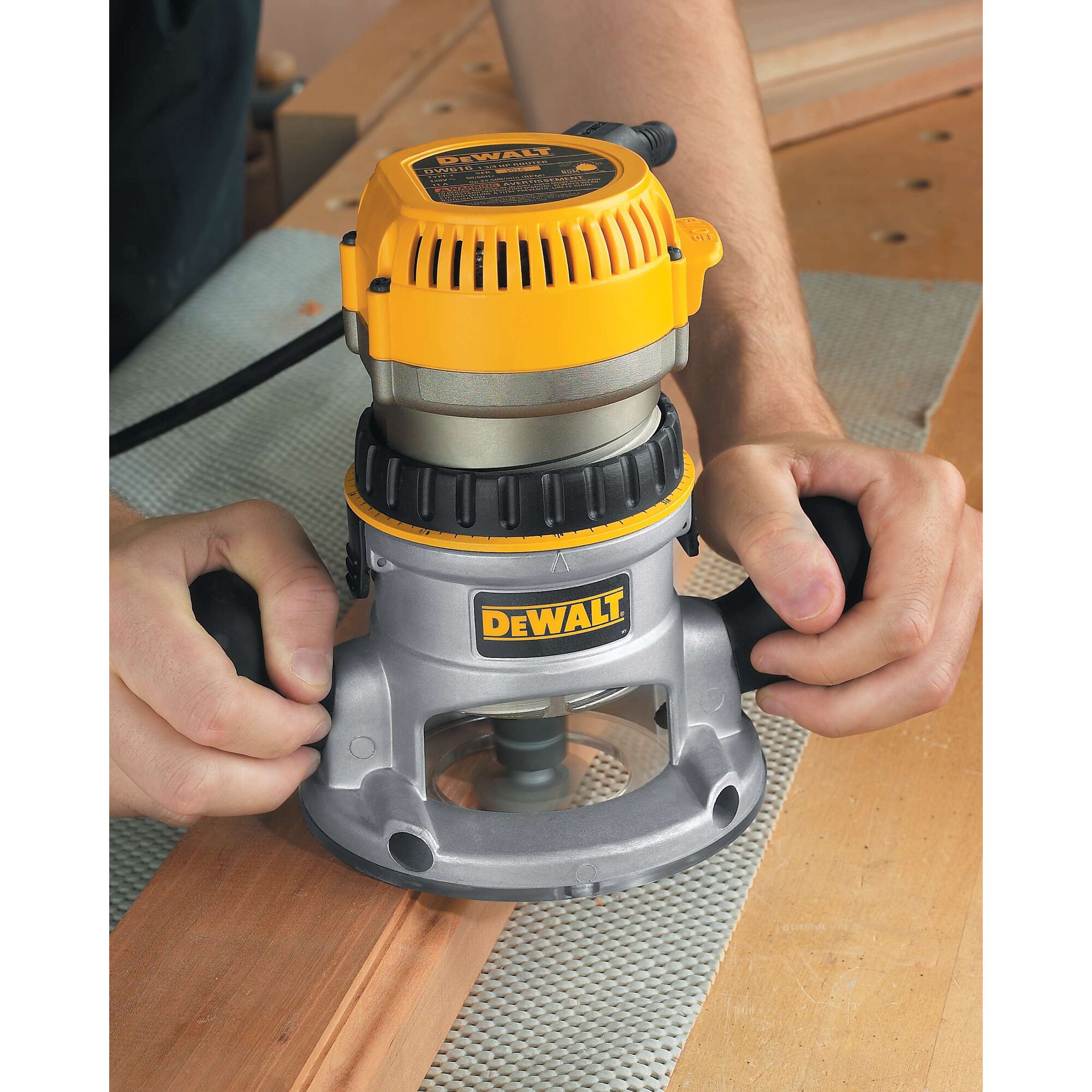

The DW616 1-3/4 HP Fixed Base Router has the power to rout smoothly through hardwoods. Provides quick and precise depth adjustments and fast, easy motor pack removal for bit and base changes.

Specifications

Color	Yellow, Black
Power Source	Corded
Product Height [in]	10.75
Product Weight [oz]	113.6
Product Width [in]	7.25

Additional Features

Right or left switch and cordset location provides the ability to have the switch in your right or left hand
Flat top for easy bit and depth changes
Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits
Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
Quick release motor latches for fast and easy motor pack removal for bit and base changes
Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
Dust-Sealed Switch protects against dust ingestion for longer switch life

Includes

(1) DW6184 Fixed base
(1) 1/4 in. and 1/2 in. Collets
(1) Sub-base concentricity gauge
(2) Wrenches
(1) DW616M Motor pack

Warranty Information

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
