DCLE34020G

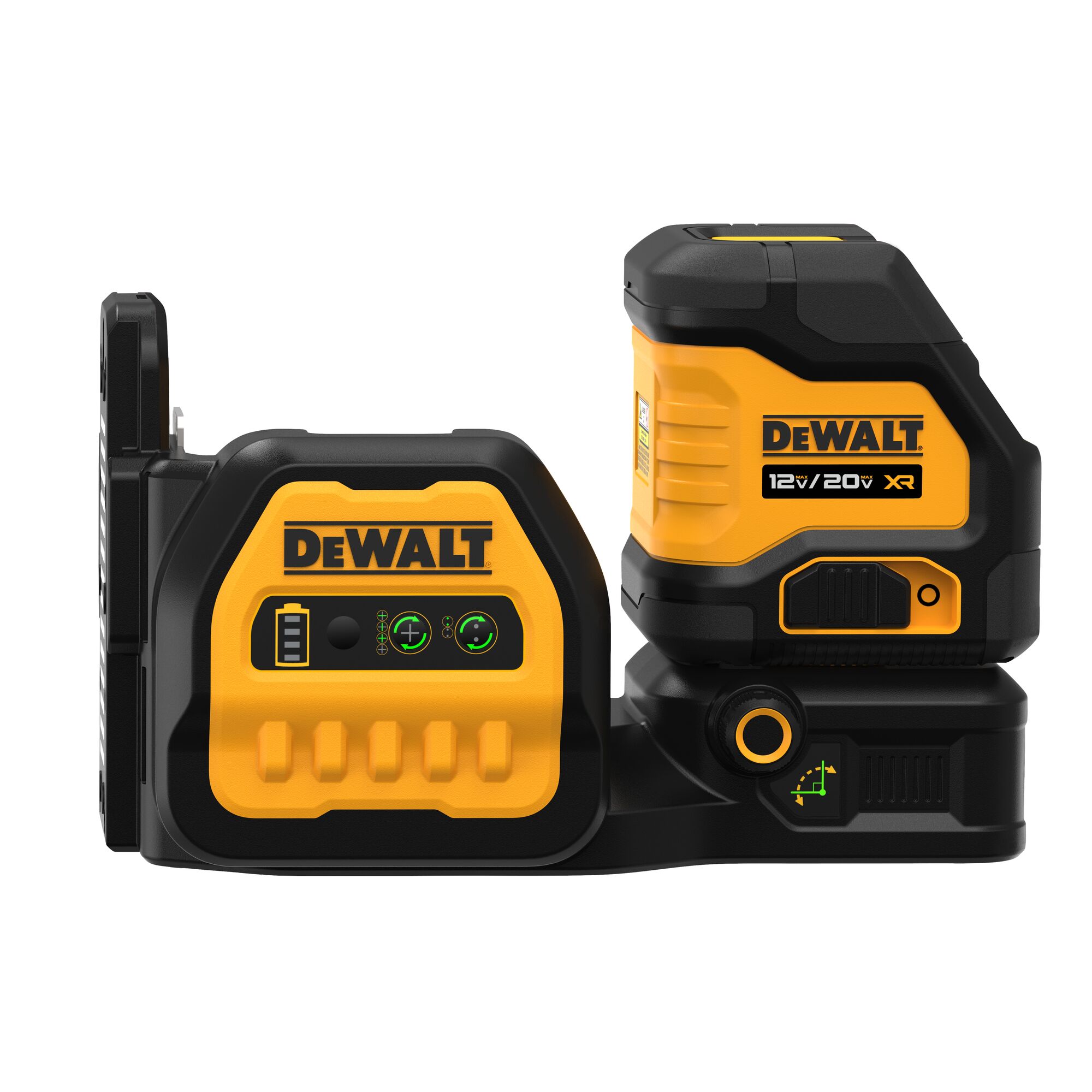

20V MAX* XR® Cordless Cross Line Green Laser Kit
DCLE34020G

20V MAX* XR® Cordless Cross Line Green Laser Kit

  • Accurate Readings - Accurate within 1/8 in. at 30 ft. to achieve plum lines
  • 20V MAX* Compatible - Providing operation with the popular DEWALT® batteries
  • 12V MAX** Compatible - Using 12V MAX** batteries
See More Details
DCLE34020G

20V MAX* XR® Cordless Cross Line Green Laser Kit

  • Accurate Readings - Accurate within 1/8 in. at 30 ft. to achieve plum lines
  • 20V MAX* Compatible - Providing operation with the popular DEWALT® batteries
  • 12V MAX** Compatible - Using 12V MAX** batteries
See More Details

Product Details

Downloads
    Product Overview
    Seamlessly integrate this 20V MAX* XR® Cordless Cross Line Green Laser with the tools you already have on the jobsite. Now offered on the 20V MAX* platform, this laser delivers professional-grade performance without the hassle of power cords, featuring a strong magnetic mount, fine adjust knob, rotating head, and locking pendulum for optimized usability. Equipped with the endurance to tackle all-day projects, this laser can keep a charge for up to 17 hours when using the included 20V MAX* 2Ah battery. The kit comes with everything you need to get right to work, including a charger, ceiling/wall bracket, and laser target in a DEWALT TSTAK® case.
    Applications
    • Framing
    • Drywall
    • MEP
    • Builder
    • Remodeler
    Specifications
    Battery Capacity [Ah]
    2
    Battery Run Time [Hrs]
    17
    Battery Source
    Rechargeable Li-Ion
    Battery Voltage [V]
    20
    Color
    Yellow
    Is Battery Included?
    Yes
    Is it a Set?
    Yes
    Laser Accuracy
    ± 1/8 in. @ 30 ft.
    Laser Beam Color
    Green Beam
    Laser Beam Projection
    Cross Line
    Leveling Type
    Self-leveling
    Line Diagram
    Cross Line
    Materials Housing
    Plastic
    Number of Batteries Included
    1
    Number of Beams
    3
    Number Of Pieces
    6
    Additional Features
    • Precise Positioning - Fine adjustment knob
    • Line Control - Individual laser line on/off providing control of lines and extending run times when possible
    • Jobsite Durability - Powerful magnetic mount supports system with up to 8Ah sized batteries
    • Extended Runtime - 17 hours of run time on single 20V MAX* 2Ah battery and longer run times with larger capacity batteries
    • 280 ft. visibile and 330 ft. max detector range****
    Includes
    • (1) Cross line green laser
    • (1) 20V MAX* 2Ah Battery
    • (1) Charger
    • (1) Drop ceiling bracket
    • (1) Target card
    • (1) TSTAK® Case
    Warranty Information
    • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

    We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

    Learn More
    Service

    We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

    emoji_objects

    New Articles

    badge

    JOIN MyDEWALT

    Join MyDEWALT to register your tools and help protect your investment, rate and review products you love, and learn about the newest DEWALT tools and accessories.

    SIGN UP NOW

    Disclaimer(s)

    • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
    • ** With detector (DW0892G), sold separately
    • *** 17 hours of runtime on average, using DEWALT 20V MAX* DCB203 2.0Ah battery with 2 laser lines in use
    • **** 280 ft (85m) visible range, 330 ft (100m) maximum range on average when used with DW0982G detector (sold separately).
