60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer Kit
DCH481X2
60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer Kit
- 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete
- Anti-Rotation E-CLUTCH ® System shuts down the tool in bind up situations
- Constant speed electronics allows the tool to maintain speed under load
DCH481X2
60V MAX* 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer Kit
- 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete
- Anti-Rotation E-CLUTCH ® System shuts down the tool in bind up situations
- Constant speed electronics allows the tool to maintain speed under load
Product Details
Downloads

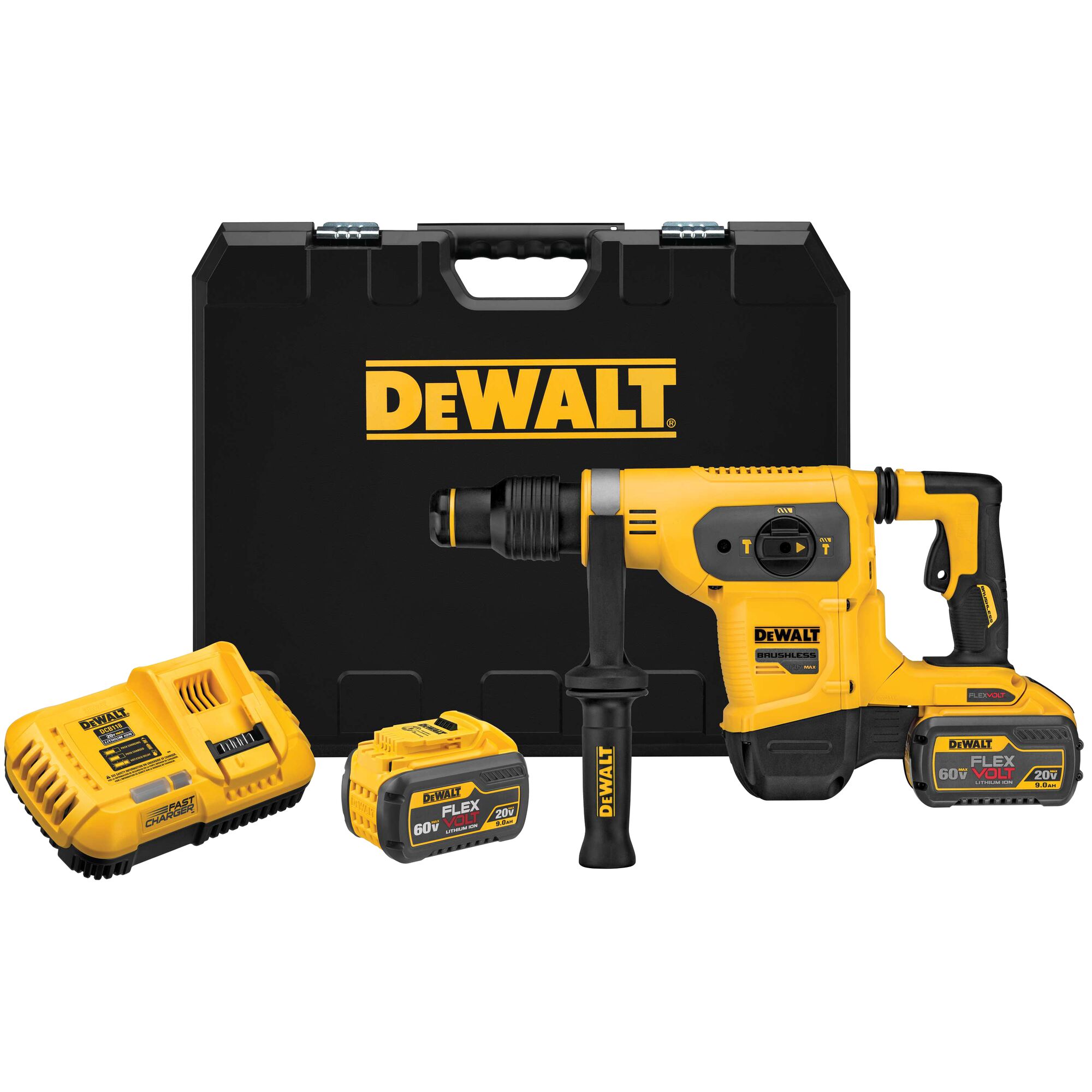

Tackle demanding jobs with this high-performance 60V MAX* 1-9/16 in. Brushless SDS MAX Combination Rotary Hammer. Featuring a brushless motor and a German-engineered mechanism for fast drilling, this lightweight hammer delivers up to 6.1 Joules of impact energy. Built with safety in mind, this powerful tool features the anti-rotation E-CLUTCH® system and SHOCKS ACTIVE VIBRATION CONTROL®. As a Tag Ready™ product, you can seamlessly track, manage and control the 60V MAX* 1-1/4 in. SDS PLUS Rotary Hammer in the TOOL CONNECT™ system. For user convenience, this tool is packaged with (2) 20V/60V MAX* FLEXVOLT® batteries, a charger, and a kit box for portability on the jobsite.
- Chipping in any mid to upper wall and ceiling application.
- Dry coring
|
Battery Capacity [Ah]
|
9
|
|
Battery Type
|
Lithium Ion
|
|
Battery Voltage [V]
|
60
|
|
Chuck Size [in]
|
1-9/16
|
|
Chuck Type
|
SDS Max
|
|
Color
|
Yellow, Black
|
|
Has Vibration Control?
|
Yes
|
|
Is Brushless?
|
Yes
|
|
Number Of Pieces
|
4
|
|
Power Source
|
Battery
|
|
Power [W]
|
300
|
|
Product Height [in]
|
5
|
|
Product Height [mm]
|
263
|
|
Product Length [in]
|
23.15
|
|
Product Length [mm]
|
502
|
|
Product Weight [g]
|
5000
|
|
Product Weight [Kg]
|
5
|
|
Product Weight [oz]
|
190.4
|
|
Product Width [in]
|
18.43
|
|
Product Width [mm]
|
108
|
|
Sound Pressure [dB(A)]
|
96
|
|
Type of Charger
|
Charging Base
|
|
Uncertainty K1 (Vibration)
|
1.5 m/s2
|
|
Used for Chipping?
|
Yes
|
|
Weight (w/o Battery) [g]
|
6650
|
- The Shocks Active Vibration Control® System reduces vibration felt by the user at the handles, compared to rotary hammers without thsis feature
- The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications and dry coring up to 3 in
- Brushless motor and durable German engineered mechanism
- Ideally suited for chipping in any mid to upper wall and ceiling
- Tag Ready™ so users and companies can attach the DEWALT Tag™ and track its location virtually anywhere via the DEWALT Tool Connect™ app
- (2) 9.0Ah XR FLEXVOLT battery packs with state of charge indicator
- (1) Multi-voltage charger
- (1) Multi-position side handle
- (1) Heavy duty kitbox
- (1) Kit box
- 3 Year Limited Warranty, 2 Years Free Service
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Related Products
0 0
Up-sell Products
0 0
Disclaimer(s)
- * Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54.
