DCF896P2

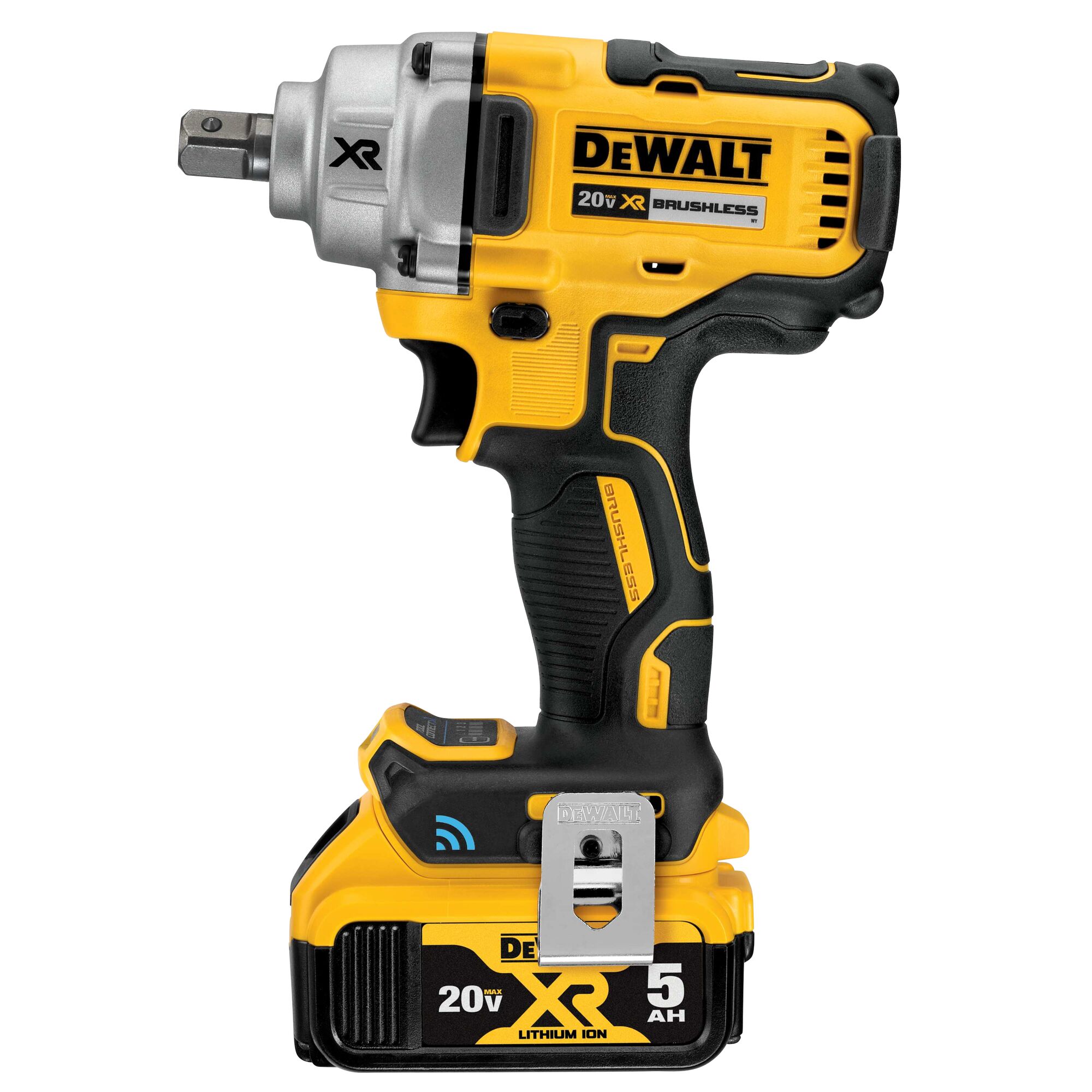

20V MAX* Tool Connect™ 1/2 in. Mid-Range Impact Wrench with Detent Pin Anvil Kit
DCF896P2

20V MAX* Tool Connect™ 1/2 in. Mid-Range Impact Wrench with Detent Pin Anvil Kit

  • 330 ft-lbs of max fastening torque and 600 ft-lbs of max breakaway torque to complete a wide variety of applications
  • Easily and quickly assign tools to jobsites and users on fthe Tool Connect™ Inventory Manager Software, increasing accountabilty and reducing lost tools
  • Compact design of only 6.95 in. and 3.48 lbs allows access to tight spaces and reduces user fatigue
See More Details
DCF896P2

20V MAX* Tool Connect™ 1/2 in. Mid-Range Impact Wrench with Detent Pin Anvil Kit

  • 330 ft-lbs of max fastening torque and 600 ft-lbs of max breakaway torque to complete a wide variety of applications
  • Easily and quickly assign tools to jobsites and users on fthe Tool Connect™ Inventory Manager Software, increasing accountabilty and reducing lost tools
  • Compact design of only 6.95 in. and 3.48 lbs allows access to tight spaces and reduces user fatigue
See More Details

Product Details

Downloads
    Product Overview
    The DCF896 Mid-Range Impact Wrench is based off of the latest edition to the DEWALT® impact wrench family, the DCF894. Integrated Bluetooth® technology pairs this tool with the free Tool Connect™ mobile app and online inventory manager portal, allowing users to track, manage and customize the tool settings. Through the app, users are able to program three customized modes based on individual needs and have control over forward and reverse speed to account for different fastener sizes and types, LED brightness and delay as well as Precision Wrench™ and the all new exclusive Precision Tap™ modes. Within Precision Wrench™, users can program the tool to automatically shut off after impacting for a set amount of time, useful for those performing repeatable applications and helps with tightening consistancy by removing variability in impact time. Precision Tap™ mode is designed to make tapping threads faster and easier by having the tool automatically alternate between forward and reverse, keeping rotations consistant and eliminating the need to manually change the tool's direction. Use this tool along with other Tool Connect™ offerings for a complete management solution.
    Applications
    • Grooved Couplings
    • Mechanical Anchors
    • Pipe Flange
    • Automotive Repair
    • Heavy Equipment Repair
    • Manufacturing Assembly
    Specifications
    Anvil Size [in]
    1/2
    Anvil Type
    Detent Pin
    Battery Type
    Lithium Ion
    Battery Voltage [V]
    20
    Battery Weight [lbs]
    1.4
    Color
    Yellow, Black
    Has LED Light?
    Yes
    Is Brushless?
    Yes
    Max. Breakaway Torque [ft-lbs]
    600
    Max. Fastening Torque [ft-lbs]
    330
    Power Source
    Battery
    Tool Length [in]
    6.95
    Weight (w/o Battery) [lbs]
    3.48
    Additional Features
    • 3 fully customizable modes allow you to personalize your impact wrench through the tool connect™ app including setting: Speed, led brightness and delay, Precision Wrench™ Control and Precision Tap™ Controls
    • Precision Wrench™ allows user to set runoff speed in reverse helping to prevent fastener runoff. In forward, users can set pause before impact and auto shut off times to aide in fastening consistency
    • Precision Tap™ automatically alternates the tool between forward and reverse allowing for easier and faster cutting of threads (vs. manual tapping)
    • DEWALT® built brushless motor for increased efficiency and runtime vs. brushed models
    • Variable speed trigger helps provide speed control to the user
    • Through the Tool Connect™ app receive diagnostics on your impact wrench such as internal coin cell battery life, tool temperature, number of trigger pulls and how long the tool has been running
    • Track your tool utilizing the last seen feature which provides the street address of where your tool was last in range of a Tool Connect™ enabled device. Help prevent theft by setting the tool to disable when out of range and receiving out of range alerts
    Includes
    • (2) DCB205 20V MAX* 5.0Ah Batteries
    • (1) Charger
    • (1) Belt Clip
    • (1) Kit Bag
    • (1) DCF896 Impact Wrench With Detent Pin Anvil
    Warranty Information
    • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

    We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

    Learn More
    Service

    We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

    emoji_objects

    New Articles

    badge

    JOIN MyDEWALT

    Join MyDEWALT to register your tools and help protect your investment, rate and review products you love, and learn about the newest DEWALT tools and accessories.

    SIGN UP NOW

    Disclaimer(s)

    • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
