20V MAX* XR® Brushless Cordless 1/4" Rivet Tool Kit With DEWALT POWERSTACK™
DCF414GE2
20V MAX* XR® Brushless Cordless 1/4" Rivet Tool Kit With DEWALT POWERSTACK™
- Get up to 300 rivets per charge** to maximize productivity on the jobsite
- Designed for ease of use with tool-free nose piece changes and on-board nose piece storage
- Compatible with mutiple size rivets including 3/16", 15/64", and 1/4" rivets
DCF414GE2
20V MAX* XR® Brushless Cordless 1/4" Rivet Tool Kit With DEWALT POWERSTACK™
- Get up to 300 rivets per charge** to maximize productivity on the jobsite
- Designed for ease of use with tool-free nose piece changes and on-board nose piece storage
- Compatible with mutiple size rivets including 3/16", 15/64", and 1/4" rivets
Product Details
Downloads

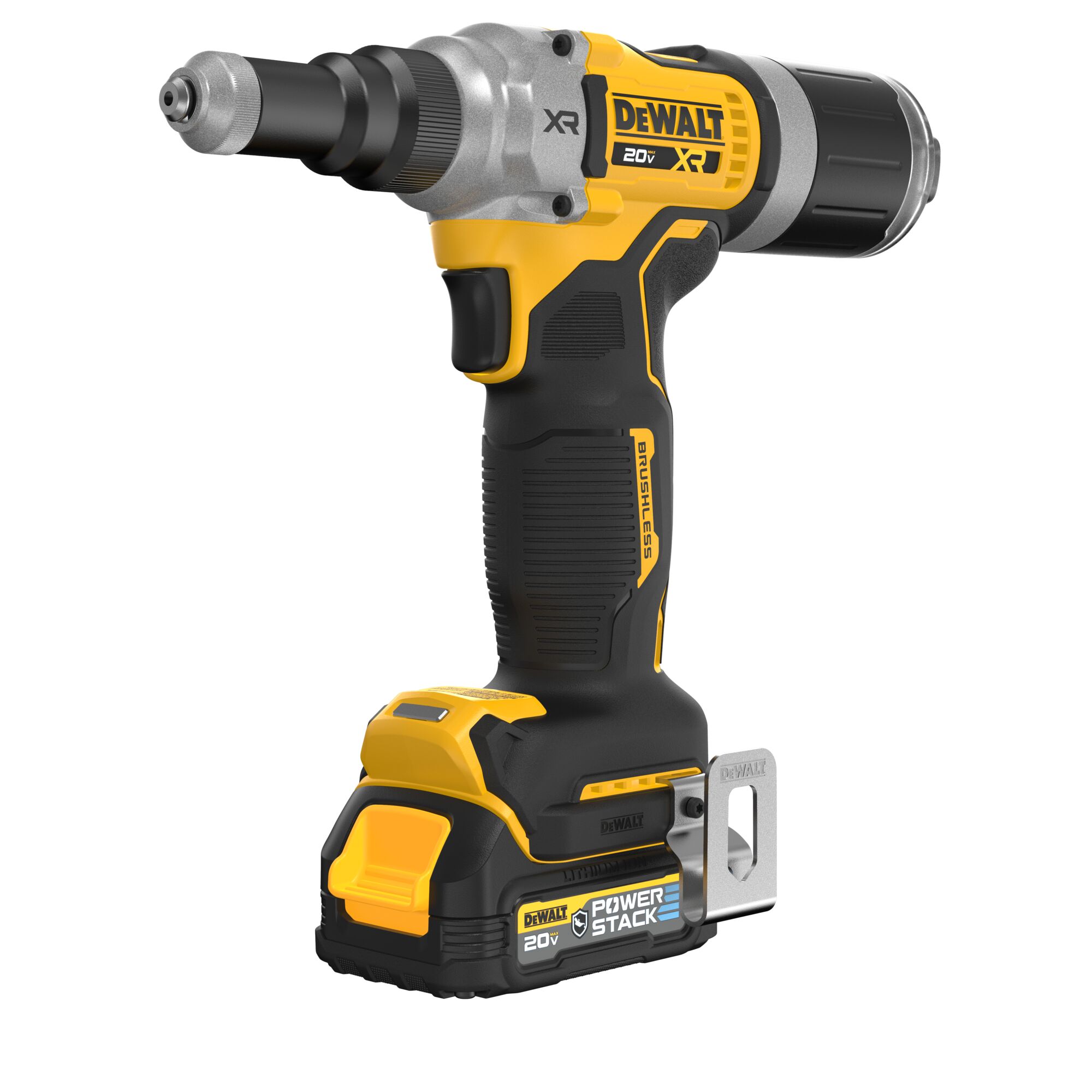

Install aluminum, steel, and stainless steel blind rivets up to 1/4" with the 20V MAX* XR® Brushless Cordless 1/4" Rivet Tool. The brushless motor delivers up to 4,500 lbf of pulling force and has the capability to pull 300 rivets per charge**. Other features like a a tool-free nose piece change and on-board nose piece storage help to maximize productivity on the jobsite. This kit includes two 20V MAX* DEWALT POWERSTACK™ Oil-Resistant Compact Batteries that are 50% more powerful, 25% more compact, and 15% lighter***.
|
Has Tool-Free Nose Piece Change?
|
Yes
|
|
Product Height [in]
|
8.6
|
|
Product Height [mm]
|
219
|
|
Product Length [in]
|
10.5
|
|
Product Length [mm]
|
268
|
|
Product Weight [g]
|
1650
|
|
Product Weight [Kg]
|
1.65
|
|
Product Weight [oz]
|
57.6
|
|
Pulling Force [lbf]
|
4500
|
|
Pulling Force [N]
|
20000
|
|
Stroke Length [in]
|
1.18
|
|
Stroke Length [mm]
|
30
|
- Capable of pulling aluminum, steel, and stainless steel blind rivets
- On-board mandrel collector designed to collect and stores loose mandrels
- 1.18" Stroke length for fastening rivets in one stroke
- Brighten work area with an integrated led work light for enhanced visibility in dimly lit areas
- Brushless motor delivers up to 4,500 lbf of pulling force for fastening rivets, including those made of stainless steel
- (1) DCF414 1/4" Rivet tool
- (2) DCBP034G 20V MAX* DEWALT POWERSTACK™ Compact oil-resistant batteries
- (1) Charger
- (1) 3/16" Nose piece
- (1) 15/64" Nose piece
- (1) 1/4" Nose piece
- (1) Replacement jaw set
- (1) Belt hook
- (1) Kit bag
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Disclaimer(s)
- * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- **With 1/4" stainless steel rivets
- ***Regarding 50% more power: vs. DCB203 battery, not in application. , Regarding 25% smaller pack and more compact: footprint vs. DCB203 battery. , Regarding 15% lighter and our lightest and most powerful: vs. DEWALT 20V MAX* batteries 2.0Ah or lower.
