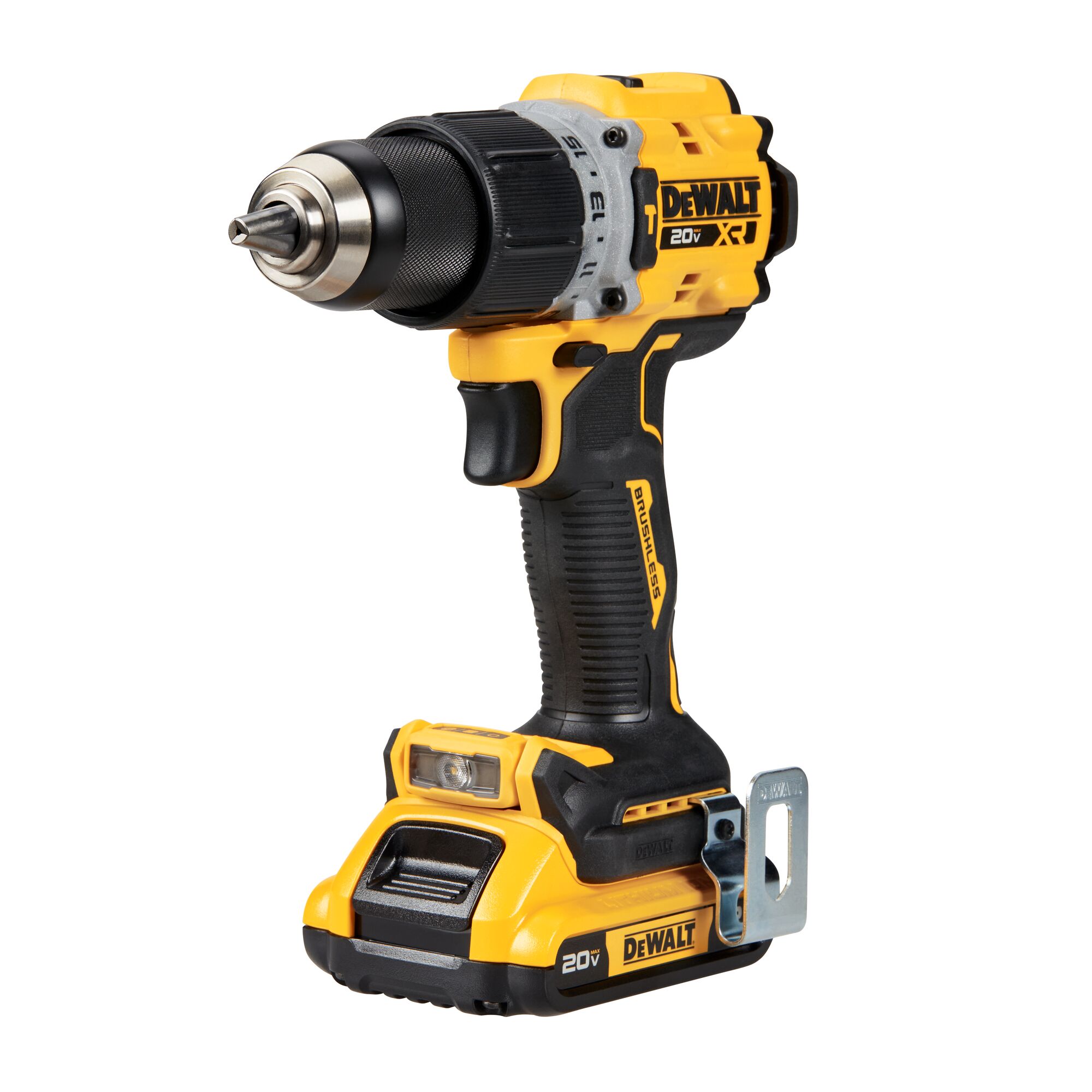

20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill/Driver Kit
DCD805D2
20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill/Driver Kit
- Access Hard To Reach Work Areas - Compact 7 in. size is 1/2 in. shorter in length** compared to the DCD796, tool head only
- High bit retention with 1/2 in. metal ratcheting chuck
- Pro-Level Speed, Control, And Precision - High-speed transmission with variable trigger and 2 speed settings (0-650/0-2,000 rpm)
DCD805D2
20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill/Driver Kit
- Access Hard To Reach Work Areas - Compact 7 in. size is 1/2 in. shorter in length** compared to the DCD796, tool head only
- High bit retention with 1/2 in. metal ratcheting chuck
- Pro-Level Speed, Control, And Precision - High-speed transmission with variable trigger and 2 speed settings (0-650/0-2,000 rpm)
Product Details
Downloads
Complete demanding fastening and drilling projects with this 20V MAX* XR® Brushless 1/2 in. Hammer Drill/Driver. Designed to deliver the durability and performance needed on professional jobsites, this tool quickly drives fasteners into thick material. Experience Power™ with this XR® kit that includes (2) 20V MAX* 2Ah batteries, a charger, and a durable storage bag for convenient portability.
|
Amps [A]
|
2
|
|
Battery Capacity [Ah]
|
2
|
|
Battery Type
|
Lithium Ion
|
|
Battery Voltage [V]
|
20
|
|
Chuck Size [in]
|
1/2
|
|
Chuck Size [mm]
|
13
|
|
Chuck Type
|
Keyless
|
|
Color
|
Black, Yellow
|
|
Has LED Light?
|
Yes
|
|
Has Variable Speed?
|
Yes
|
|
Is Battery Included?
|
Yes
|
|
Is it a Set?
|
Yes
|
|
Nominal Maximum RPM
|
2000
|
|
Number of Speed Settings
|
2
|
|
Power [W]
|
300
|
|
Product Height [in]
|
8-9/64
|
|
Product Length [in]
|
7
|
|
Product Weight [oz]
|
47.2
|
|
Product Width [in]
|
3
|
|
Tool Length [in]
|
7
|
- Brighten Dark Work Areas - Adjustable 3-Position, 3 Mode LED with up to 70 Lumens, including LED spotlight mode which features a 20-minute shutoff function for extended work time in low-light spaces
- Designed to help you get more done with optimized performance and runtime
- Manage And Track Tools At The Jobsite - Drill/Driver chip pocket accepts TOOL CONNECT™ chip DCE042 and connects with TOOL CONNECT™ Site Manager app for seamless worksite asset management (DCE042 sold separately)
- (1) DCD805 20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill/Driver
- (2) DCB203 20V MAX* 2Ah Batteries
- (1) DCB112 Charger
- (1) Kit Bag
- (1) Belt Hook
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Disclaimer(s)
- * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- **DCD805 is 1/2 in. shorter length compared to the DCD796, tool head only.
