DCD703F1

XTREME™ 12V MAX* Brushless Cordless 5-in-1 Drill/Driver Kit

DCD703F1

XTREME™ 12V MAX* Brushless Cordless 5-in-1 Drill/Driver Kit

Access tight spaces with compact, lightweight design and 4 dedicated attachment solutions
Built for control and consistency: High speed transmission with 2 speed settings and 15 clutch settings
Optimized performance and runtime: Brushless motor offers pro-grade efficiency

See More Details

DCD703F1

XTREME™ 12V MAX* Brushless Cordless 5-in-1 Drill/Driver Kit

Access tight spaces with compact, lightweight design and 4 dedicated attachment solutions
Built for control and consistency: High speed transmission with 2 speed settings and 15 clutch settings
Optimized performance and runtime: Brushless motor offers pro-grade efficiency

See More Details

Product Details

Downloads

Product Overview

Take on a wide range of drilling jobs with the versatile XTREME™ 12V MAX* Brushless Cordless 5-in-1 Drill/Driver Kit. Designed to improve access in hard-to-reach spaces, this Multi-Head Drill/Driver features 4 dedicated attachment solutions. Drill and fasten in confined spaces with ease using the 1/4 in. hex right angle attachment, while the 1/4 in. hex quick release offset accessory delivers high performance in challenging corner spots. Conveniently load 1/4 in. hex accessory bits using one hand with the 1/4 in. hex quick release add-on, then tackle precision applications like drilling small pilot holes with the 3/8 in. ratcheting chuck attachment. Keep your bits close at hand with the built-in ¼ in. Hex Magnetic Bit Holder for short tool length. At less than 5 in. long, this compact tool offers pro-level usability with 2-speed transmission and 15 clutch settings for the control you need to complete a variety of projects. This kit is packaged with (1) 12V MAX* 2Ah battery, a charger, and a durable storage bag for convenient portability.

Applications

1/4 in. hex quick release attachment provides one-handed loading, accepts 1 in. bit tips. Primarily used for driving fasteners where space is not the biggest concern
3/8 in. ratcheting chuck attachment provides a wide range of drilling applications. Primarily used for drilling with standard round shank drill bits.
1/4 in. hex right angle attachment provides 90° drilling and fastening solution in confined spaces. Primarily used for driving fasteners in a confined position where the user is unable to align the tool straight-on.
1/4 in. hex quick release offset attachment provides unrivalled corner access. Primarily used for driving fasteners in a position where the drill may cause misalignment.
Drilling holes into wood
Drilling holes into metal
Hard to reach areas, such as Cabinets, Window/door Locks, under sink fastening- clamps for H/C water lines, hinges
Rough-in work for plumbing/electrical

Specifications

Battery Capacity [Ah]	2
Battery Type	Lithium Ion
Battery Voltage [V]	12
Chuck Size [in]	3/8
Has LED Light?	Yes
Is Brushless?	Yes
Number of Clutch Positions	15
Power Source	Cordless
Product Depth [in]	4.96
Product Height [in]	7-3/8
Product Length [in]	4.96
Product Weight [oz]	25.6
Product Width [in]	2.26

Additional Features

Brighten dark workspaces with led foot light
Maneuver with ease: Compact, lightweight tool weighs 1.6 lbs. (without battery or attachments)
Highly adaptable: Drill and fasten in confined spaces with 1/4 in. hex right angle attachment, access corners with 1/4 in. hex quick release offset accessory, execute one-handed bit loading with the 1/4 in. hex quick release attachment, and complete precision drilling with the 3/8 in. ratcheting chuck accessory

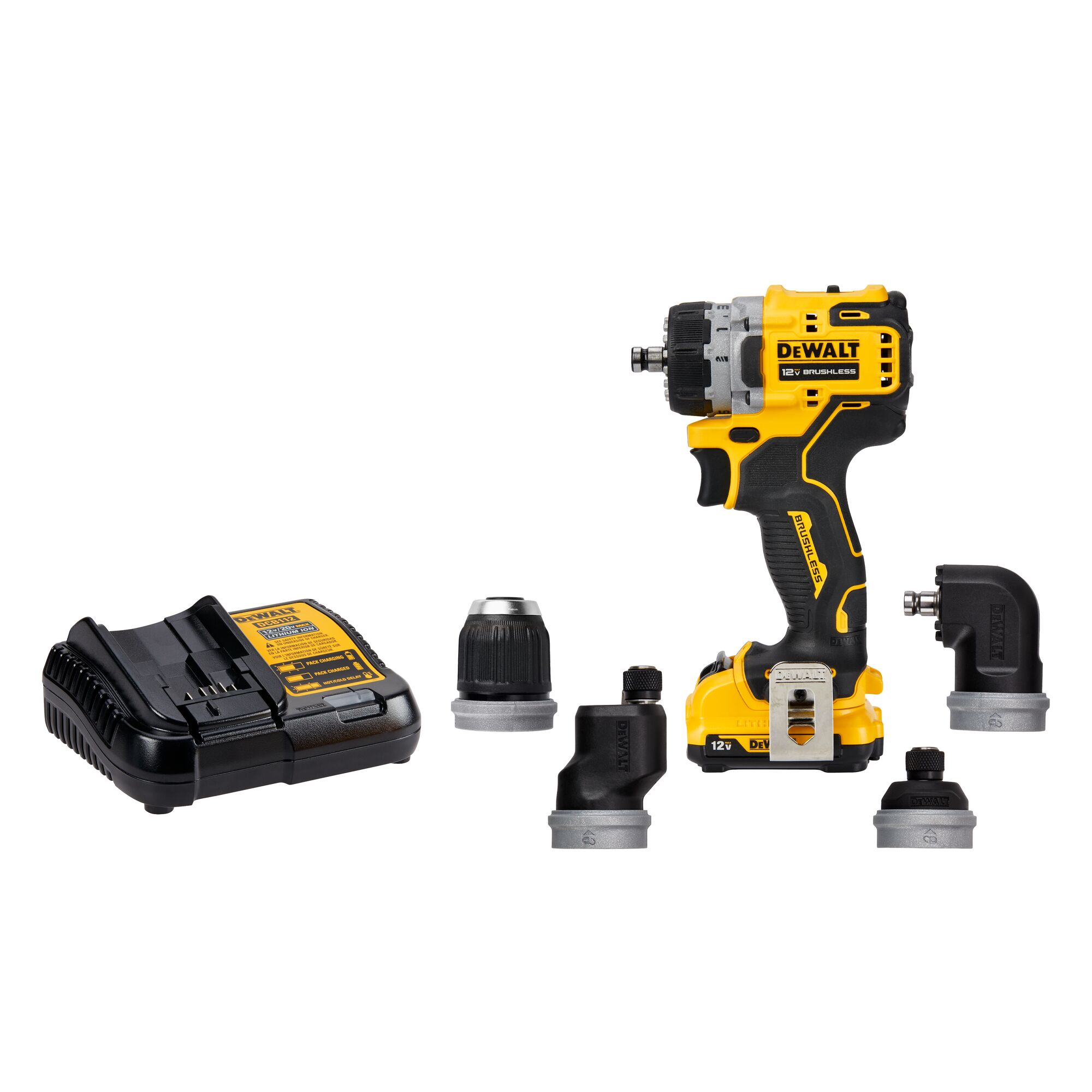

Includes

(1) DCD703 XTREME™ 12V MAX* 5-in-1 Drill/driver
(1) 12V MAX* DCB122 Battery (2.0Ah)
(1) DCB112 Charger
(1) Kit bag
(1) 3/8 in. Chuck attachment
(1) 1/4 in. Hex right angle attachment
(1) 1/4 in. Hex quick release attachment
(1) 1/4 in. Hex quick release offset attachment
(1) Belt hook

Warranty Information

3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
